Polymer - Model 103050-2S
Custom 103050-2S 7.4V 1500mAh LiPo Battery Pack
- Cell Type
- Polymer
- Nominal Voltage
- 7.4V
- Rated Capacity
- 1,500mAh
- Size
- 10x30x50mm x 2S
- Rated Energy
- 11.1Wh
- Limited Charging Voltage
- 8.4V
Application Guide
Compact 2S LiPo Battery Pack for OEM Integration
The 103050-2S is a 7.4V 1500mAh LiPo battery pack, not a single LiPo cell. Its two pouch cells are connected in series so their voltage combines while the rated capacity remains 1500mAh. The existing 10×30×50mm × 2S format can be integrated into compact electronic devices with a PCM, connector, cable length and label selected for the host product.

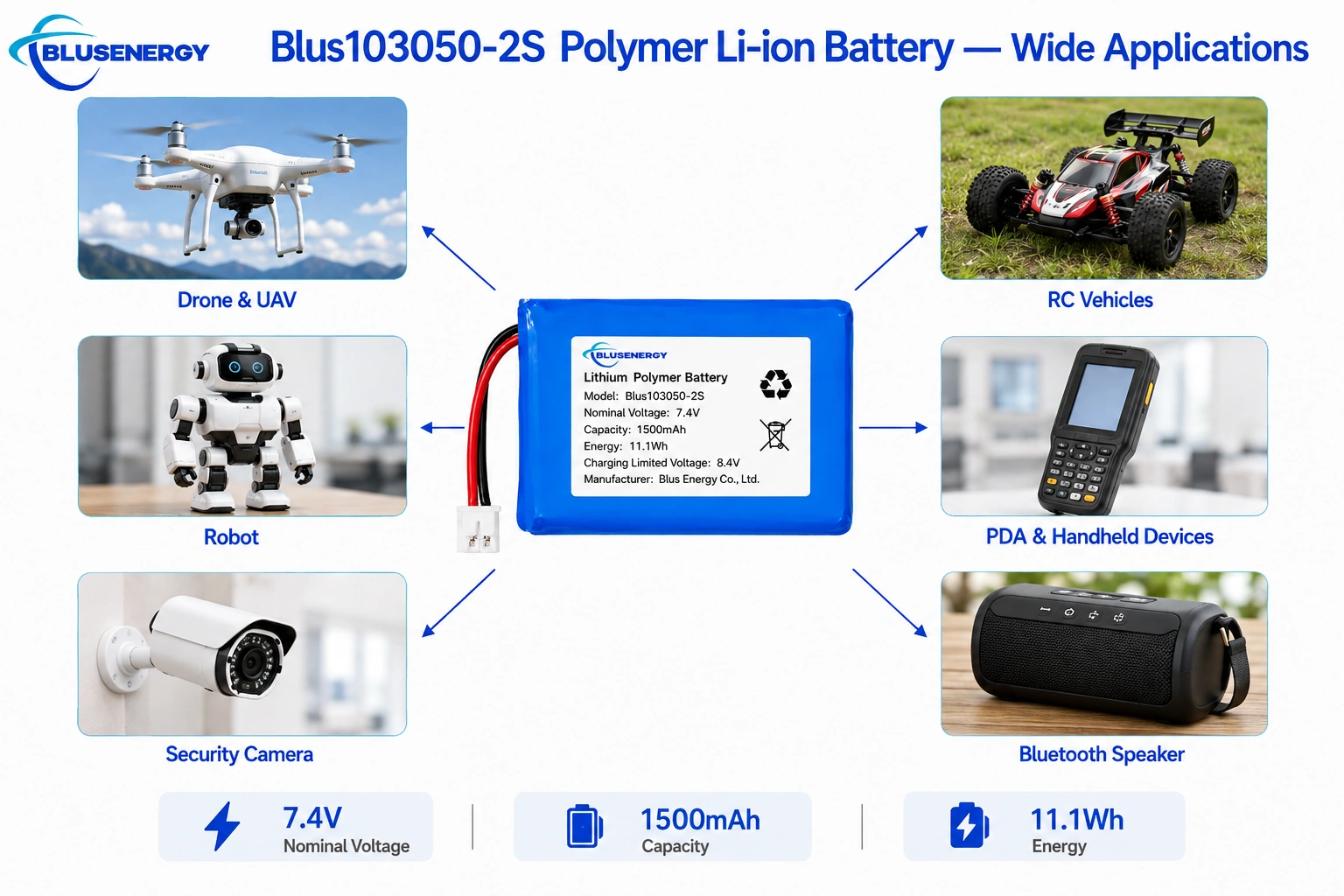

Typical Applications
- Compact electronic devices
- Portable electronic equipment
- OEM electronic devices requiring a 7.4V LiPo pack
- Products designed around the confirmed 2S installation space
Custom Battery Options
- PCM and protection requirements for the application
- Connector type, pinout and cable length
- Product label and cable routing
- Integration with the device enclosure and available space
Manufacturer / OEM
Integrating the 103050-2S Pack into a Product Enclosure
Confirm the available enclosure space, load requirements, connector and cable routing before integration. BLUSENERGY can review the PCM, wiring, label and pack interface against the OEM device while preserving the confirmed 7.4V, 1500mAh and 10×30×50mm × 2S product specification.
Related buying guides
Technical Data
Specifications
Model 103050-2S
Features
103050-2S
- High energy density up to 280 Wh/kg
- Long cycle life ≥ 500 cycles
- Low self-discharge < 3% / month
- Stable performance with built-in PCM
- Multiple protection: overcharge / overdischarge / short-circuit
Applications
OEM / ODM
Customization options
Need a different capacity, size, connector or battery configuration? Send us your requirements and our engineers will evaluate a suitable solution for your project.
Request a custom quote →- Capacity customization
- Connector customization
- PCM / BMS customization
- Cable length customization
- Logo printing
- Battery pack assembly
Frequently Asked Questions
Is the 103050-2S a single LiPo cell?+
No. It is a 2S LiPo battery pack made with two pouch cells connected in series, providing a 7.4V nominal pack voltage and 1500mAh rated capacity.
Can the PCM, connector and cable length be customized?+
Yes. The PCM requirements, connector, pinout and cable length can be matched to the confirmed electrical and enclosure requirements of the OEM device.
Can the label and enclosure integration be customized?+
Yes. Label details, cable routing and the battery interface can be reviewed against the product enclosure and available installation space.
How do I request a product quote and sample?+
Fill in the form on the Contact page or email us at info@blusenergy.com. Please include voltage, capacity, dimensions, usage scenario, target certifications and required quantity. Our engineers will respond within 24 hours.
What is the product minimum order quantity (MOQ)?+
MOQ depends on the battery model and customization requirements. Sample and prototype quantities can be discussed based on your project needs. Send us your specifications and estimated quantity, and we’ll evaluate the most suitable option for your project.
Which international safety certifications do your battery products carry?+
IEC62133, UN38.3, MSDS, CE, RoHS, UL2054, UL9540, IEC62619, KC, BIS, PSE, CB, ISO9001, ISO14001. We can also arrange additional certifications on request.
How long do sampling and bulk delivery each take?+
Standard products: 7–15 days. Customized packs: 15–25 days for samples, 25–45 days for mass production (depending on certification and tooling).
What is the official warranty period for all battery products?+
12 months for consumer cells, 24 months for industrial packs, up to 10 years for energy storage systems (subject to project scope).
Do you provide installation guidance and technical support for energy storage systems?+
Yes. For BESS and household storage we provide installation manuals, remote training, on-site commissioning (paid) and 24/7 ticket support.
