Polymer - Model 103450
Custom 103450 3.7V 2000mAh LiPo Cell
- Cell Type
- Polymer
- Nominal Voltage
- 3.7V
- Rated Capacity
- 2,000mAh
- Size
- 10x34x50mm
- Rated Energy
- 7.4Wh
- Limited Charging Voltage
- 4.2V
Application Guide
103450 LiPo Cell Integration for Compact OEM Products
The 103450 is a single 3.7V 2000mAh LiPo pouch cell in a 10×34×50mm format. Its dimensions should be checked against the product enclosure and available installation space before integration. PCM and protection requirements, connector, cable length and label can be confirmed for the OEM product project.

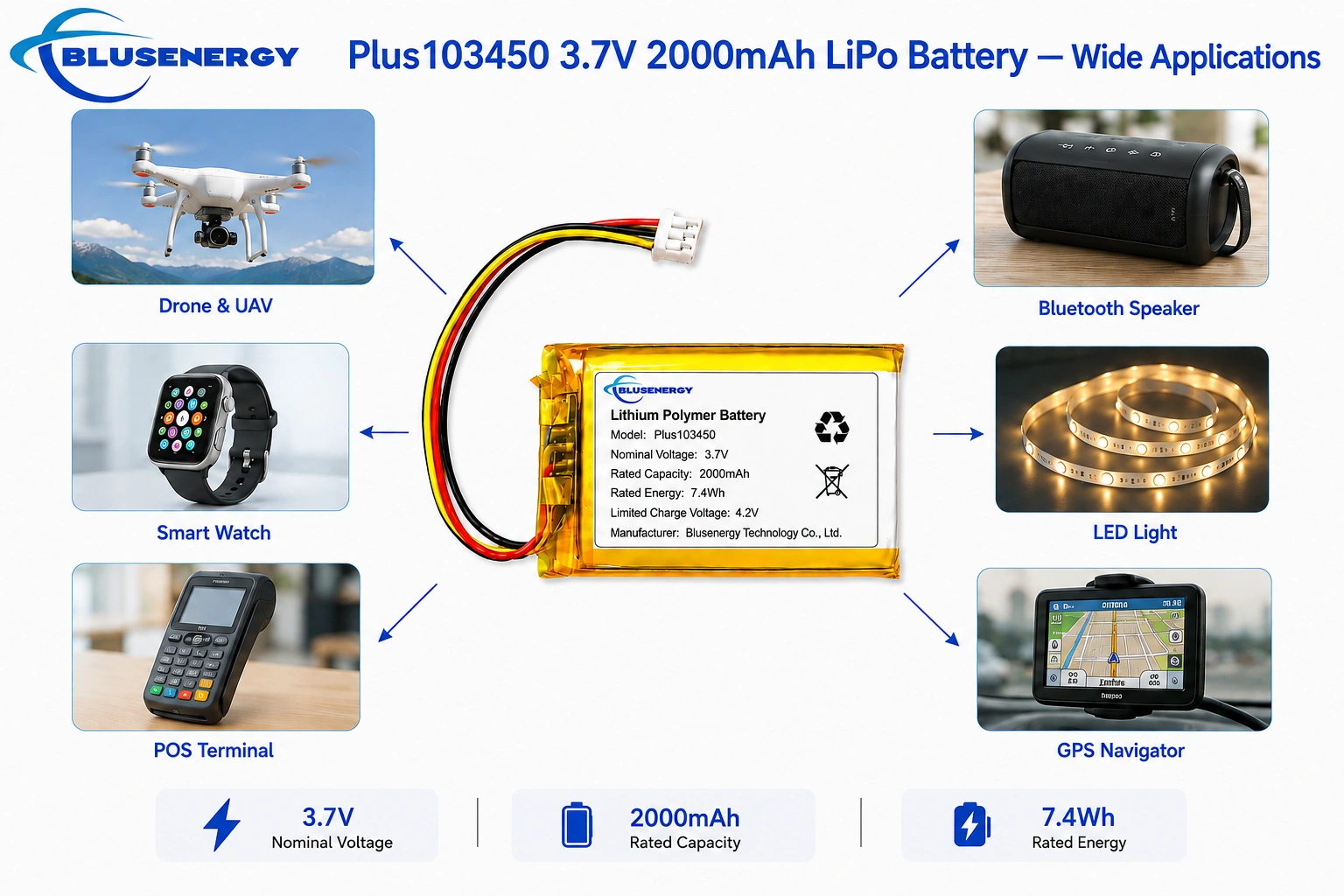

Typical Applications
- Medical devices with a compatible load profile
- PDA products with suitable installation space
- IoT products designed for a single 3.7V pouch cell
Custom Battery Options
- PCM and protection requirements for the host product
- Connector type and pinout
- Cable length and routing
- Product label and enclosure integration
Manufacturer / OEM
Information Needed for 103450 Integration Review
For an OEM integration review, provide the load current requirement, peak current requirement and peak duration, available installation space, connector requirement and cable length requirement. These details allow the electrical and enclosure fit to be assessed against the confirmed cell format.
Related buying guides
Technical Data
Specifications
Model 103450
Features
103450
- High energy density up to 280 Wh/kg
- Long cycle life ≥ 500 cycles
- Low self-discharge < 3% / month
- Stable performance with built-in PCM
- Multiple protection: overcharge / overdischarge / short-circuit
Applications
OEM / ODM
Customization options
Need a different capacity, size, connector or battery configuration? Send us your requirements and our engineers will evaluate a suitable solution for your project.
Request a custom quote →- Capacity customization
- Connector customization
- PCM / BMS customization
- Cable length customization
- Logo printing
- Battery pack assembly
Frequently Asked Questions
Is the 103450 product a single LiPo cell?+
Yes. It is a single 3.7V 2000mAh LiPo pouch cell in the confirmed 10×34×50mm format.
Can the PCM, connector and cable length be customized for this cell?+
They can be confirmed for the project based on the host product's protection requirements, connector interface, cable routing and available installation space.
What enclosure and load information should I provide for integration?+
Provide the load current requirement, peak current requirement and peak duration, available installation space, connector requirement and cable length requirement.
How do I request a product quote and sample?+
Fill in the form on the Contact page or email us at info@blusenergy.com. Please include voltage, capacity, dimensions, usage scenario, target certifications and required quantity. Our engineers will respond within 24 hours.
What is the product minimum order quantity (MOQ)?+
MOQ depends on the battery model and customization requirements. Sample and prototype quantities can be discussed based on your project needs. Send us your specifications and estimated quantity, and we’ll evaluate the most suitable option for your project.
Which international safety certifications do your battery products carry?+
IEC62133, UN38.3, MSDS, CE, RoHS, UL2054, UL9540, IEC62619, KC, BIS, PSE, CB, ISO9001, ISO14001. We can also arrange additional certifications on request.
How long do sampling and bulk delivery each take?+
Standard products: 7–15 days. Customized packs: 15–25 days for samples, 25–45 days for mass production (depending on certification and tooling).
What is the official warranty period for all battery products?+
12 months for consumer cells, 24 months for industrial packs, up to 10 years for energy storage systems (subject to project scope).
Do you provide installation guidance and technical support for energy storage systems?+
Yes. For BESS and household storage we provide installation manuals, remote training, on-site commissioning (paid) and 24/7 ticket support.
